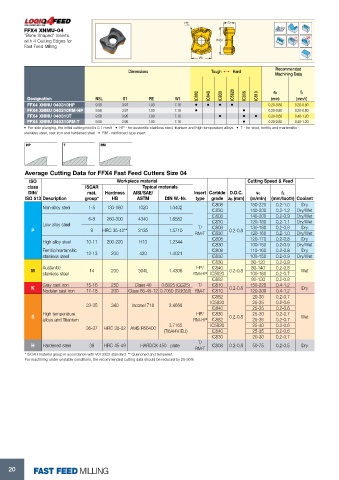

Page 20 - FAST FEED MILL Brochure_metric 2022

RE S1
FFX4 XNMU-04
"Bone Shaped" Inserts Rd°
with 4 Cutting Edges for INSL
Fast Feed Milling
W1

Dimensions Tough 1 Hard Recommended
Machining Data

IC882 IC840 IC830 IC5820 IC808 IC810 ap fz
Designation INSL S1 RE W1 (mm) (mm/t)
FFX4 XNMU 040310HP 9.58 3.97 1.00 7.16 • • • • 0.20-0.80 0.20-0.80
FFX4 XNMU 040310RM-HP 9.58 3.97 1.00 7.16 • • 0.20-0.80 0.20-0.80
FFX4 XNMU 040310T 9.58 3.95 1.00 7.16 • • • 0.20-0.80 0.40-1.20
FFX4 XNMU 040310RM-T 9.58 3.95 1.00 7.16 • 0.20-0.80 0.40-1.20
• For side plunging, the initial cutting feed is 0.1 mm/t • HP - for austenitic stainless steel, titanium and high temperature alloys • T - for steel, ferritic and martensitic
stainless steel, cast iron and hardened steel • RM - reinforced type insert
HP T RM

Average Cutting Data for FFX4 Fast Feed Cutters Size 04
ISO Workpiece material Cutting Speed & Feed
class ISCAR Typical materials
DIN/ mat. Hardness AISI/SAE/ Insert Carbide D.O.C. vc fz
ISO 513 Description group* HB ASTM DIN W.-Nr. type grade ap (mm) (m/min) (mm/tooth) Coolant
IC808 150-220 0.2-1.0 Dry
Non-alloy steel 1-5 130-180 1020 1.0402
IC830 140-200 0.2-1.2 Dry/Wet
IC808 140-200 0.2-0.9 Dry/Wet
6-8 260-300 4340 1.6582
Low alloy steel IC830 120-180 0.2-1.1 Dry/Wet
P 9 HRC 35-42** 3135 1.5710 T/ IC808 0.2-0.8 130-180 0.2-0.8 Dry
RM-T IC830 120-160 0.2-1.0 Dry/Wet
IC808 120-170 0.2-0.8 Dry
High alloy steel 10-11 200-220 H13 1.2344
IC830 100-150 0.2-0.9 Dry/Wet
Ferritic/martensitic 12-13 200 420 1.4021 IC808 110-160 0.2-0.8 Dry
stainless steel IC830 100-150 0.2-0.9 Dry/Wet
IC830 80-120 0.2-0.9
Austenitic HP/ IC840 80-140 0.2-0.8
M 14 200 304L 1.4306 0.2-0.8 Wet
stainless steel RM-HP IC5820 100-160 0.2-0.7
IC882 80-130 0.2-0.8
K Gray cast iron 15-16 250 Class 40 0.6025 (GG25) T/ IC810 0.2-0.8 150-220 0.4-1.2 Dry
Nodular cast iron 17-18 200 Class 65-45-12 0.7050 (GGG50) RM-T IC810 120-200 0.4-1.2
IC882 20-30 0.2-0.7
IC5820 25-35 0.2-0.6
33-35 340 Inconel 718 2.4668
IC840 25-35 0.2-0.6
High temperature HP/ IC830 25-30 0.2-0.7
S 0.2-0.8 Wet
alloys and Titanium RM-HP IC882 25-35 0.2-0.7
3.7165 IC5820 25-40 0.2-0.6
36-37 HRC 30-32 AMS R56400
(Ti6AI4V ELI) IC840 25-35 0.2-0.6
IC830 20-30 0.2-0.7
T/
H Hardened steel 38 HRC 45-49 HARDOX 450 plate IC808 0.2-0.8 50-75 0.2-0.5 Dry
RM-T
* ISCAR material group in accordance with VDI 3323 standard ** Quenched and tempered
For machining under unstable conditions, the recommended cutting data should be reduced by 20-30%

20 FAST FEED MILLING
