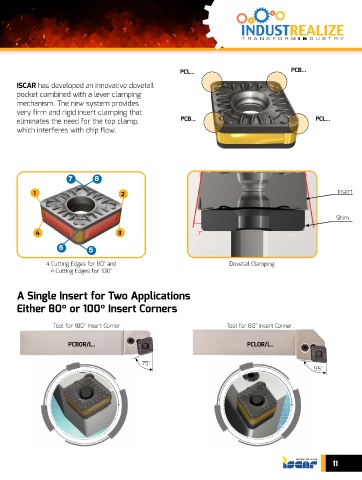

ISCAR has developed an innovative dovetail
pocket combined with a lever clamping
mechanism. The new system provides
very firm and rigid insert clamping that
eliminates the need for the top clamp, PCB... PCL...
which interferes with chip flow.

7 8

1 2 Insert

Shim

4 3 7°

6 5

4 Cutting Edges for 80° and Dovetail Clamping
4 Cutting Edges for 100°

A Single Insert for Two Applications
Either 80º or 100º Insert Corners

Tool for 100° Insert Corner Tool for 80° Insert Corner

PCBOR/L.. PCLOR/L..
